🌞 My Journey to Building a Solar System for Our Vineyard Cabin

I’ve always been fascinated by solar panels and the idea of producing free electricity. When I bought a small vineyard plot without a grid connection, this curiosity turned into a real necessity. After purchasing the land, I involved my wife and children in this dream—because living alone in a vineyard house wouldn’t mean much without them.

Before the container house arrived, my wife and I built the foundation together. Working in daylight was easy, but after sunset things changed completely. We continued with rechargeable flashlights, a small battery, LED lamps, and sometimes just the light from our phones. My wife trusted that I would eventually solve the lighting problem. She even imagined storing our food safely in a small refrigerator. Back then, I thought, “If I can just solve the lighting, that’s enough.”

Even before the house existed, I started searching flea markets and second-hand websites for solar panels. My first setup came from a flea market: three panels of different wattages and two devices whose purposes I barely understood at the time. Only later did I realize how lucky I was.

---

🔌 My First Solar Panels — A Flea Market Beginning

The panels I bought were:

• 1 × 12V 80W – 4.56A monocrystalline panel
• 2 × 12V 20W – 1.55A small panels

The devices included:

• An old Epever MPPT charge controller (12–24V, max 20A)
• A basic 12V 10A PWM solar controller

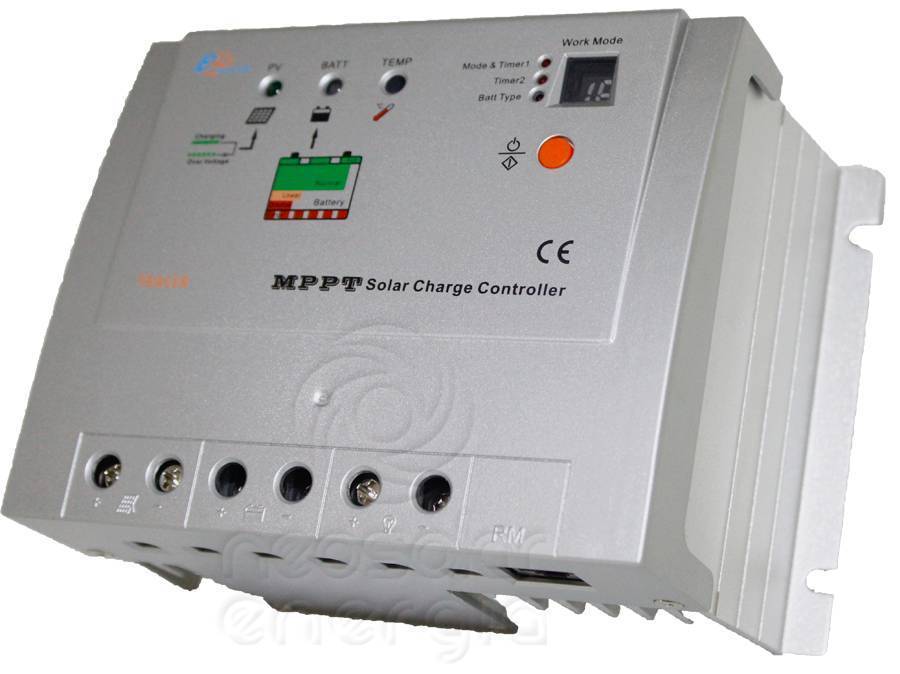

My Epever MPPT charge controller.

Surprisingly, the Epever MPPT turned out to be a very high-quality device according to everything I read online.

Later, I ordered additional 20W panels from Temu, then added four 25W panels. Eventually I learned that mixing different wattages, voltages, and amperages reduces efficiency significantly. I also discovered the difference between monocrystalline and polycrystalline panels—another topic worth its own article.

---

⚡ Calculating My First Solar Output — Using a Simple Excel Sheet

To estimate how much electricity my system could generate, I created a simple Excel sheet. By wiring all panels in parallel, I multiplied their total current by the voltage to estimate the output in watts. This helped me understand how much power I would need for lighting, a refrigerator, a TV, or even a drill.

But I had missed two critical points:

• Where will I store the electricity? → Choosing the right battery
• How will I convert it into usable home power? → Choosing an inverter

---

🔋 Battery & Inverter Selection — What You Actually Need

If your goal is similar to mine—lighting, a TV, a small refrigerator, a coffee machine—this setup is ideal:

• 2 × 12V 100Ah LiFePO₄ batteries
• A 2000W pure sine wave inverter (minimum)

If you only want lighting:

• 1 × 12V 50Ah gel battery / carbon deep-cycle battery
• No inverter needed — connect LED lamps directly to the battery

This way you avoid the DC → AC → DC conversion losses, which typically result in 20–30% efficiency loss.

---

🔢 Simple Energy Consumption Calculation (Beginner-Friendly)

Here’s a quick reference calculation table for anyone building a small off-grid system.

📘 LED Lighting Example

🔋 50Ah Gel Battery Example

• Total energy: 12V × 50Ah = 600Wh
• Usable (gel battery): 50% → 300Wh

A 9W LED lamp consuming 67.5Wh per night can run for approximately: 300Wh / 67.5Wh ≈ 4 nights.

---

📌 How Much Power Do You Actually Need?

1. Check your device’s watt rating (TV 70W, fridge 60W, etc.)
2. Multiply watt × hours
3. Add 25% for losses
4. Compare with your battery capacity
5. Calculate how many solar panels are required based on sunlight hours (average in most regions: 4–5 hours of peak sun)

---

📝 Final Thoughts — Producing Your Own Electricity Is an Incredible Feeling

If you’re wondering whether you can build a small off-grid system, my answer is: absolutely yes. I started with almost no knowledge, bought my first panels from a flea market, and today I can power lights, a refrigerator, a TV, and small tools with confidence.

If you have questions about calculations or want to design your own off-grid system, feel free to ask. I’ve gained a lot of real-world experience and I’m happy to share everything I’ve learned.
